Name |
Date |
Unit |
|
Model |

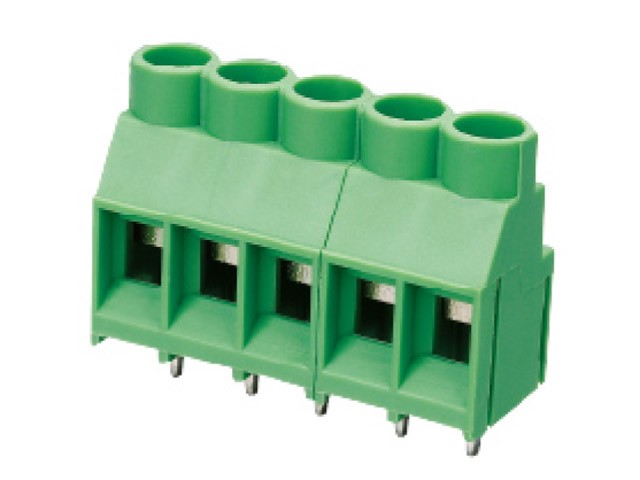

MU4H7.62 |
|
|
Pitch |
7.62 |
mm |
|
Digit |
2,3 splicing |
|
|
Length |
L=N*7.62 |
mm |
|
Width |
12.5 |
mm |
|
Height |
21.5 |
mm |
|
PCB Hole diameter |
1.5 |
mm² |
|
Insulation material group |
Ⅰ |
|
|
Complied standards① |
IEC |
|
|
Rated surge voltage（Ⅲ/3）① |
6 |
KV |
|
Rated surge voltage（Ⅲ/2）① |
6 |
KV |
|
Rated surge voltage（Ⅱ/2）① |
6 |
KV |
|
Rated voltage（Ⅲ/3）① |
500 |
V |
|
Rated voltage（Ⅲ/2）① |
630 |
V |
|
Rated voltage（Ⅱ/2）① |
1000 |
V |
|
Nominal current① |
32 |
A |
|
Complied standards② |
UL |
|
|
Rated voltage② |
300 |
V |
|
Nominal current② |
30 |
A |
|
Min.connection capacity for solid wire |
0.2/24 |
mm²/AWG |
|
Max.connection capacity for solid wire |
6/10 |
mm²/AWG |
|
Min.connection capacity for strand wire |
0.2/24 |
mm²/AWG |
|
Max.connection capacity for strand wire |
4/12 |
mm²/AWG |
|
Line direciton |
Parallel to PCB |
|
|
Strip length |
8 |
mm |
|
Torgue |
0.6 |
N*m |
|
Insulation material |
PA66 |
|
|
Inflammability class |
UL94 V-0 |
|
|
Conductive piece of material |
Brass |
|
|
Insulation material |
Steel |
|
|
Pressure frame material |
Brass |
|
